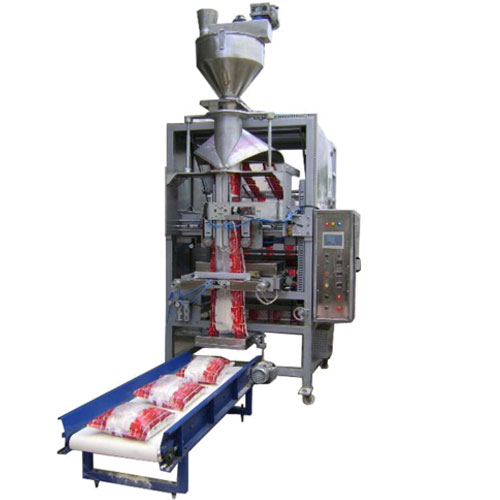

This machine is made for filling the powders vertically into the pouches. The machine can handle the filling works of any type of powders smoothly. This machine has its applications in different industries like salt, detergent powders, etc. The powders are difficult to fill in the desired packets or bottles, but by using this machine, the whole work will become easy for you. These auger based collar type VFFS machines are fast and reliable in their works. Once you started using this, your workflow will be enhanced and you will start getting proper results by it.
Features:
| Product Specification | VFFS (Collar Type) is an PLC controlled intermittent Center Seal Bag making machine can pack up to 10 Kg of various kind of Powder suitable for wide range of heat sealable film such as PET / MET BOPP/ POLY ,Paper laminate. Etc. |
|---|---|
| Feeding head | Auger Screw Filler with Servo Driven motor. |
| Production Speed | 12 – 15 pouches per minutes @ 5kg 8 – 10 pouches per minutes @ 10kg |
| Machine control system | P.L.C (Screen touch Programmed Logic Controller). |
| Packing range | 5 – 10kg |
| Filling Accuracy | +/- 1% (Max) |
| Type of Sealer | Hermetic Sealing System |
| Style of Pack | Center sealed Pillow type. |
| Compressed Air pressure | 6kg / cm2 at 40 C. |
| Air consumption | 40 m3 / Hour. |
| Power Consumption | 7 kW / Hour. |
| Peak Power | 10 kW. |
| Power requirement | 3 Phase, 415V, 50Hz |
