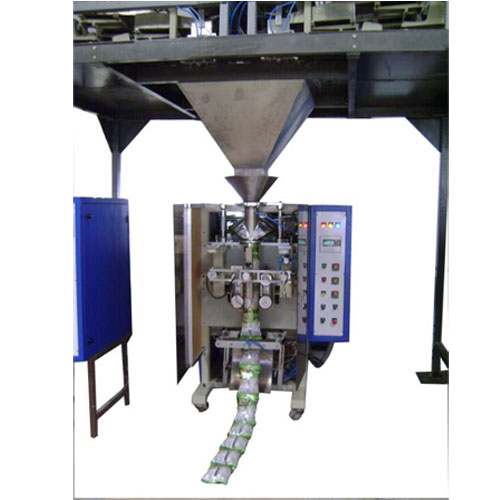

Vertical Form Fill Seal Machine (VFFS)
VFFS (Collar Type) is an PLC Controlled intermittent Center Seal Bag making machine can pack up to 1 Kg of various kind of Powder, Granule, Liquid, Semi-liquid, Suitable for wide range of heat sealable film such as PET / MET BOPP / POLY or PET/POLY, Paper or Al- Foil laminate. etc. Impulse sealing also incorporated for LDPE / HDPE / LLPE. Easy change over time. All Product Contact parts are made of SS-316, / SS-304.
Features:
| Weight to be packed: | 30gms-1000gm |
|---|---|
| Automation: | PLC Controlled, PID Temp. Controller, HMI etc. |
| Roll Width: | 525mm Maximum |
| Bag Width : | 75mm to 190 mm ( Max.) Bag Length: 65mm to 300 mm (Max). |
| Type Of Bag: | Center Seal Bag. |
| Power Supply & Consumption: | 415V , 3 Phase, 50 Hz, and 4.5kw. |
| Compressed Air Required: | 6 CFM @ 6 Bar |
| Speed: | 40-70 Bag/Min (Depend on the product and Quantity to be packed) |
| Dimension: | L; 1550mm, W:1050mm, H: 2700mm |
| Net Weight: | 550 Kg. (Approx.) |
